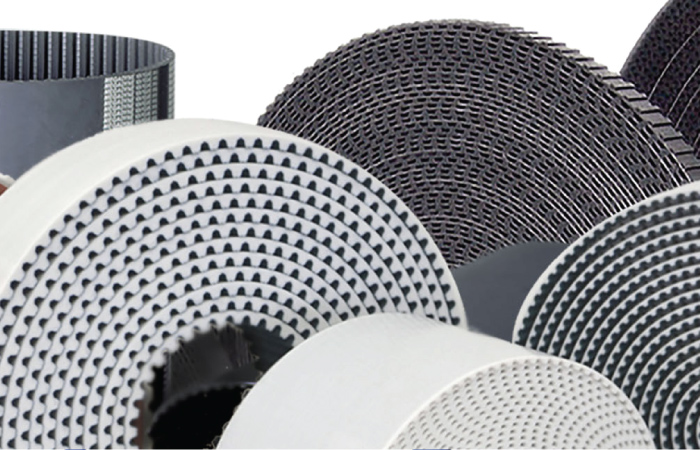

Timing/Synchronous Belts
Many systems use timing/synchronous belts to modify speeds and relay the torque that powers equipment from electric motors or other drives to the driven equipment. These belts require proper alignment to optimize the belted drive's longevity, offering the benefits of safety and efficiency in your system. At Megadyne Group, we have high-quality industrial timing belts to meet the needs of a range of applications.
Synchronous or timing belts are a type of tooth belt that consists of a toothed sprocket, or pulley, and belt teeth that transmit power using positive engagement. Exact shaft synchronization results from this engagement, eradicating speed loss and slippage that v-belts often experience.
The belt teeth in timing/synchronous belts feature a shape that is trapezoidal, curvilinear, or modified curvilinear. The teeth fit into the sprocket’s matching grooves, which allows for positive power transmission at high and low speeds for high-torque operations. To provide the best results and prevent gradual wear and tear, timing belts must be able to resist corrosion and stretch.
Benefits of Timing Belts
Timing belts come with a number of advantages, such as :
Clean operation
By preventing contamination, a clean operation is beneficial for machinery requiring consistently sanitary environments.
Cost efficiency
These belts do not require costly downtime, allowing for more continuous production.
Energy efficiency
Timing belt drives offer 99% energy efficiency, according to the U.S. Department of Energy. As a result, systems generate reduced operating expenses.
Low maintenance
Synchronous belts work well in applications where maintenance is difficult to perform. This is because of their lack of a need for lubrication and re-tensioning.
Low noise
These belts minimize both noise and vibration in their systems.
Low tension requirements
Timing belts do not require high tension during operation, resulting in minimum bearing loads to help increase the lifespan of bearings and motors.
Non-slip, positive performance
Belt teeth feature precise meshing with pulley grooves due to tight manufacturing tolerances and compatibility between the parts. This provides consistent output speeds while preventing speed variation, vibration, or skipping in your processes.
Popular profiles
Timing belts are available in low-noise STD and high-torque profiles, along with conventional trapezoidal and HTD curvilinear profiles.
Savings on space and weight
Short center distances and small pulleys make timing belts more compact, weighing far less than other alternatives per horsepower transmitted.
Versatile load and speed capabilities
Varied designs allow for more flexibility, which makes these belts suitable for extensive applications. For instance, the belt's load-carrying capacity can range anywhere from nominal to as much as hundreds of horsepower, along with speeds of one to more than 10,000 RPM.
