Ultrascreen Product Range

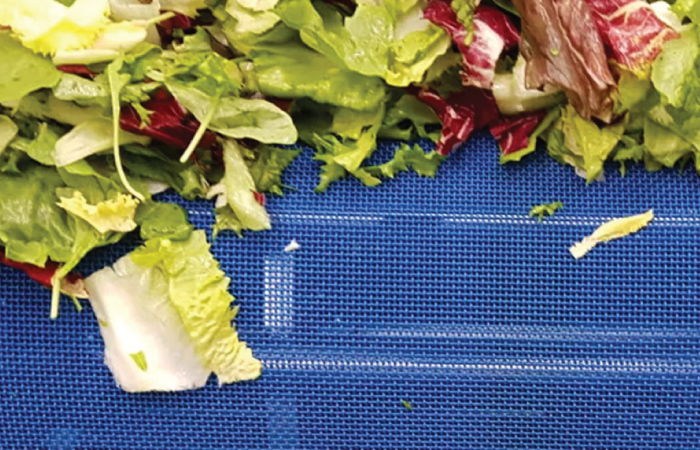

The main application of Belting Corporation Ultrascreen Belts is the de-watering and drying of washed fresh cut vegetables. Various different mesh sizes of the screen material allow the perfect solution for each product size. Combined with a large open area the result is the highest possible production output.
Ultrascreen Belts are also used in cooling processes, recycling of used washing water, waste water treatment, filtering, sieving and squeezing.
Benefits:
Variable mesh sizes for any product
Excellent hygienic properties; supports ISO 22000 requirements (previously HACCP)
Ultrascreen 1000
- Mesh opening 1000 μm
- 100% polyester monofilament
- Light blue colour (non-food colour)
- Stabilising strips PVC, Amtel TPE-E
- Air permeability 3640 L/dm²/min at Δp=100 Pa
- Water permeability 700 to 2060 mm/s*
- Open area 30 to 60%*
- Food standards EC1935/2004, FDA
- Belt properties determined by the properties of stabilising strips and accessories
- Recyclable version available
*Depending on mesh size
Ultrascreen 2000
- Mesh opening 2000 μm
- 100% polyester monofilament
- Light blue colour (non-food colour)
- Stabilising strips PVC, Amtel TPE-E
- Air permeability 5080 L/dm²/min at Δp=100 Pa
- Water permeability 700 to 2060 mm/s*
- Open area 30 to 60%*
- Food standards EC1935/2004, FDA
- Belt properties determined by the properties of stabilising strips and accessories
- Recyclable version available
*Depending on mesh size
Ultrascreen 3000
- Mesh opening 3000 μm
- 100% polyester monofilament
- Light blue colour (non-food colour)
- Stabilising strips PVC, Amtel TPE-E
- Air permeability 6000 L/dm²/min at Δp=100 Pa
- Water permeability 700 to 2060 mm/s*
- Open area 30 to 60%*
- Food standards EC1935/2004, FDA
- Belt properties determined by the properties of stabilising strips and accessories
- Recyclable version available
*Depending on mesh size
Ultrascreen 4000
- Mesh opening 4000 μm
- 100% polyester monofilament
- Light blue colour (non-food colour)
- Stabilising strips PVC, Amtel TPE-E
- Air permeability 6540 L/dm²/min at Δp=100 Pa
- Water permeability 700 to 2060 mm/s*
- Open area 30 to 60%*
- Food standards EC1935/2004, FDA
- Belt properties determined by the properties of stabilising strips and accessories
- Recyclable version available
*Depending on mesh size
