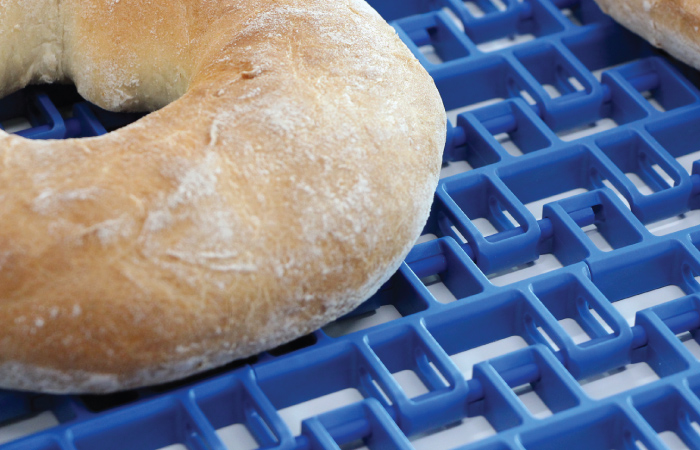

Side Flexing
Our wide and varied uni Flex Series offer a range of unique properties from hybrid to pinless, from small opening % to the most open side flexing belts on the market.
- Various collapse factors
- Full plastic and hybrid solutions
- Pinless and pinned belts
- High curve loads allowed
- High tensile strength
- Rolling curve frictions
- High wear-resistance
- Exceptional durability and hardness
- High PV limits
- Excellent surface finish
25.4 mm (1.00 in)
uni Flex ASB
Strong cleanable multi purpose 1 inch pitch side flexing belts with proven performance in spiral applications.
Unique patented design delivers reliability and strength.
Product features:
- Easy to clean due to improved hygienic design of the hinges
- Less support strips due to increased lateral stability
- Radius 1.6, 2.2 and larger for oversized drums are available
- Curved surface version offers class-leading radius pull
uni Flex OSB
The cooling belt developed for bakers!
Designed in response of the need for more consistent and homogeneous cooling. Wherever the product is placed on the spiral excellent cooling is ensured.
Product features:
- Less sweating on base of product due to 14% contact area
- With 60% opening, the most open full plastic side flexing belt on the market
- Strong belt for high load and high product throughput
- Inside radius: 2.2 / 2.5 / 3.0 / 3.5 / 4.0 x belt width
uni Flex SNB
Strong and tight radius versatile 1 inch pitch side flexing belt suitable for many different applications.
Created to optimize throughput in high volume operations with space limitations.
Product features:
- 180 degree high-speed side flexing applications
- Unique radius top surface for minimum product contact
- Reinforced stainless steel links for higher strength, speed or load
- Special surface - hybrid belt solution
- Replaceable edge wear parts
38.1 mm (1.50 in)
uni Flex ONE
Unique pinless 1.5 inch pitch side flexing belt with unmatched radius pull.
Created to optimise throughput in high volume operations with space limitations. Appreciated for its unique pinless design and other unique features.
Product features:
- Easy maintenance with uni Snap Link® (pinless design)
- Integrated wear parts for higher speed and load
- Edge bearings or EWC tabs for rolling curve friction allowing for use in helix conveyors
- Very low friction material
50.8 mm (2.00 in)
uni Flex L-ASB
Very strong cleanable 2 inch pitch side flexing belt. The improved hygienic design of this side flexing belt makes it the ideal processing belt in cooling, freezing, drying or proofing applications.
Product features:
- POM-D material containing a self-lubricating component, improving non-stick characteristics
- Increased lateral stability allows the use of fewer support strips
- Available in collapsing factors of 1.6, 2.2 and even larger
- Class leading radius pull
uni Flex L-OSB
The most open 2 inch pitch spiral belt on the market today!
For cooling and transport of larger baked goods such as loaves and buns.
Product features:
- 65% open area fully extended 54% open even when collapsed, it ensures the best airflow
- Lightweight design means less energy is needed to drive the belt
- Less sweating on base of product due to only 12% contact area
- Easy-to-clean links prevent dirt from getting trapped in the belt
uni Flex L-OSB Direct Drive
The most open 2 inch pitch spiral belt on the market today, now available with Direct Drive!
The patented design of the uni Direct Drive System™ delivers the smoothest engagement in the market. This ensures consistent operation, even in the most challenging environments.
Product features:
- Excellent vertical airflow (65% open)
- Lowest surface contact (12% contact area)
- Uniform opening across width
- No crumb retention
- High beam strength
- Seamless and smooth engagement
- No protruding parts
- less vulnerable for damage
- less risk of snagging
